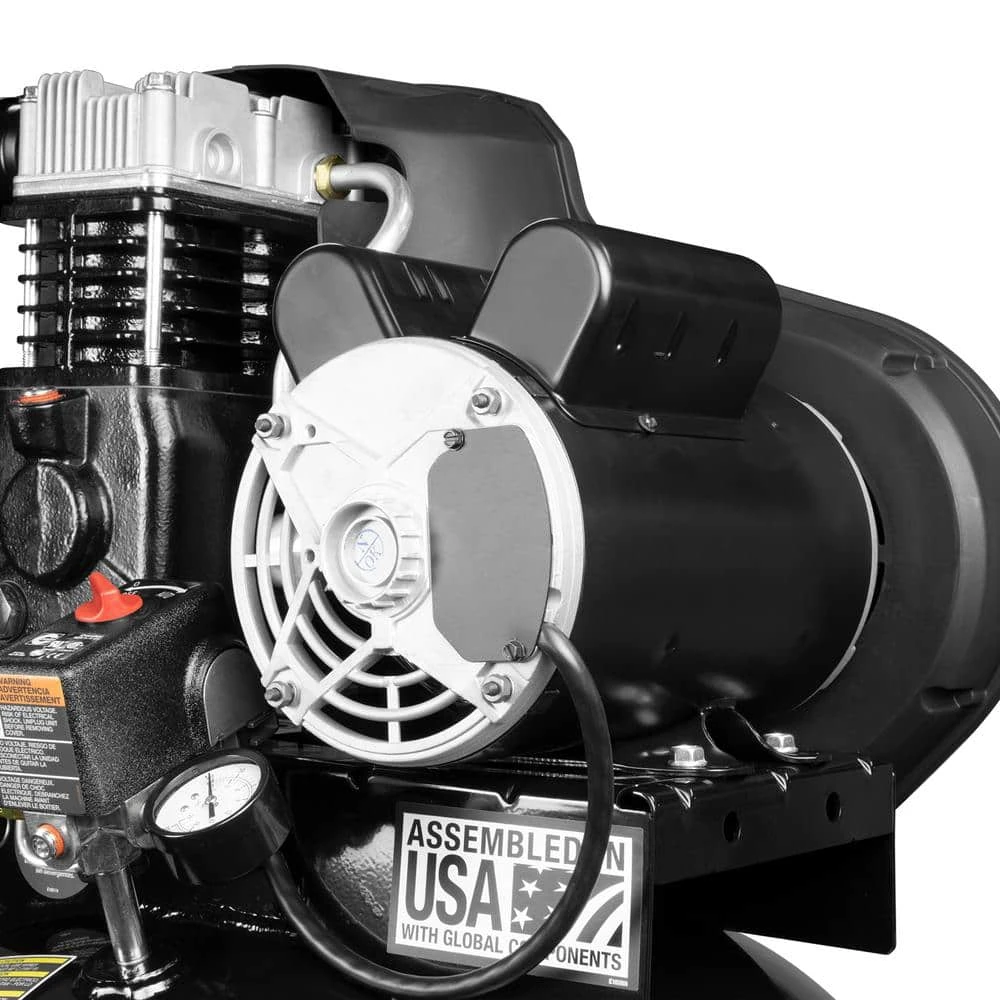

The Husky 60 Gal. oil lubed belt drive air compressor is industry leading with 2-stage performance in a single stage pump. This air compressor provides 92% longer air tool runtime compared to 60 Gal. 2 Stage compressors with 175 maximum psi and 7.9 SCFM at 90 psi. The heavy-duty, cast-iron, 2-cylinder pump is oil lubricated for a long life and delivers 11.5 CFM at 90 psi which provides 45% higher SCFM air delivery versus typical 60 Gal. 2 Stage 175 psi compressor with 175 Maximum PSI and 7.9 SCFM at 90 psi. The poly-v pulley and drive belt provides smooth operation of the air compressor with less vibration. In addition, the high efficiency aluminum flywheel is engineered to provide maximum air flow and allows for an efficient and smooth start-up. The Husky 60 Gal. 175 psi air compressor is perfect for a small shop, automotive enthusiast or serious DIY user. This unit features a 208-Volt to 230-Volt electric motor. It should be connected to a power supply that is 230-Volt, 60 Hz, AC only. Please consult your local codes and a certified electrician before wiring this compressor for power. This compressor does not include a power cord.

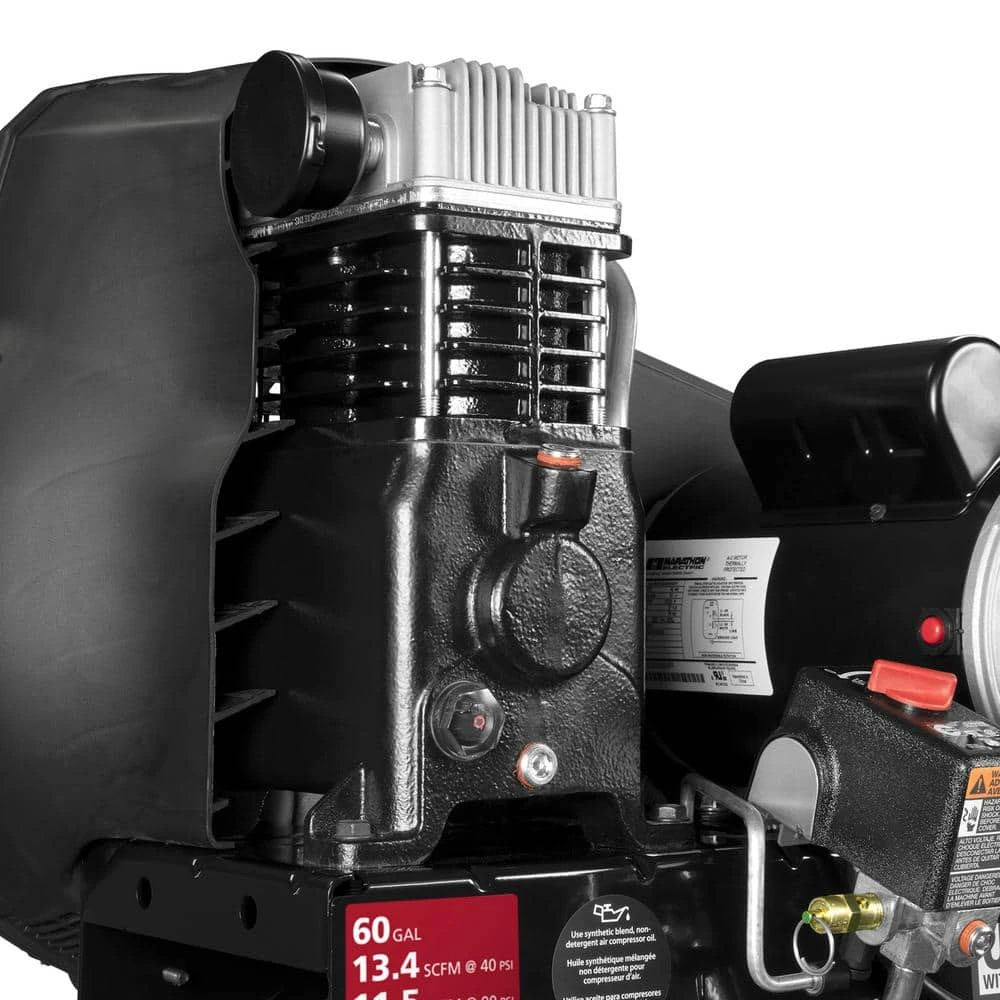

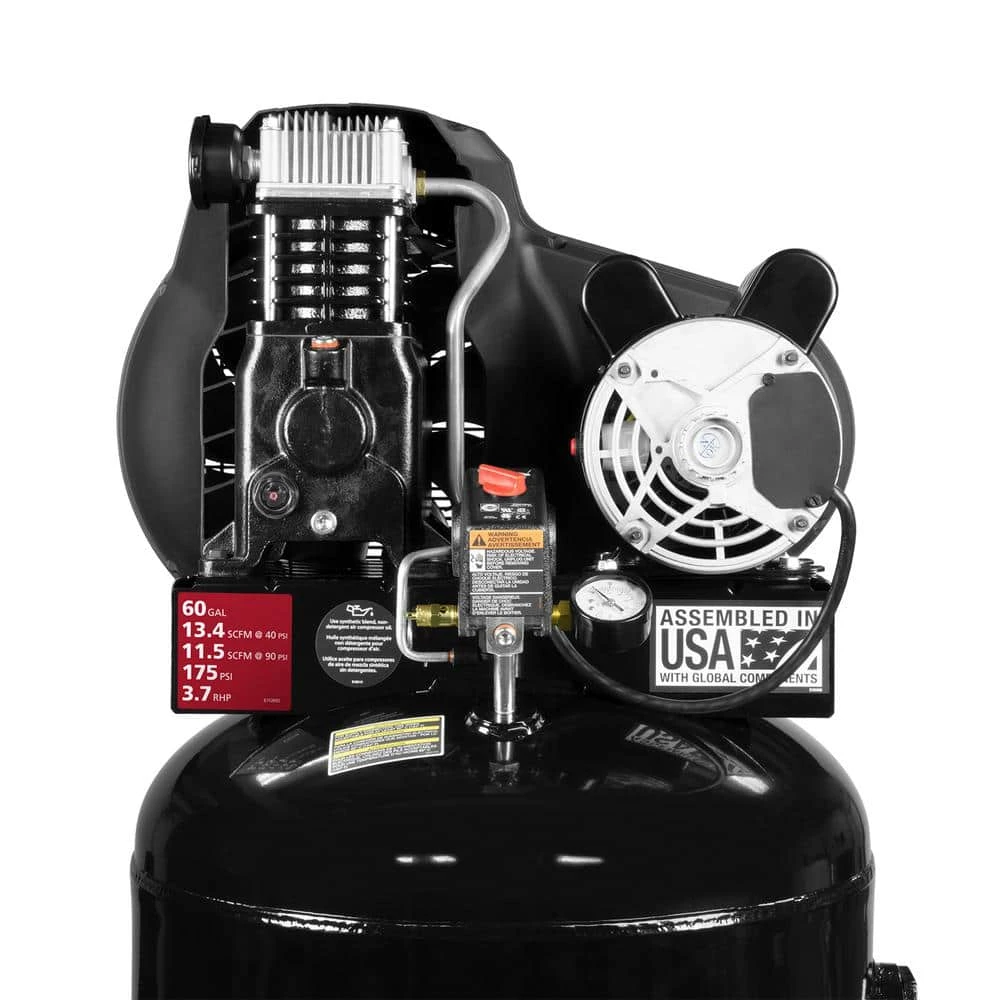

- Cast iron pump and cylinder for improved durability
- Poly-v pulley and drive belt provides smooth operation with less vibration

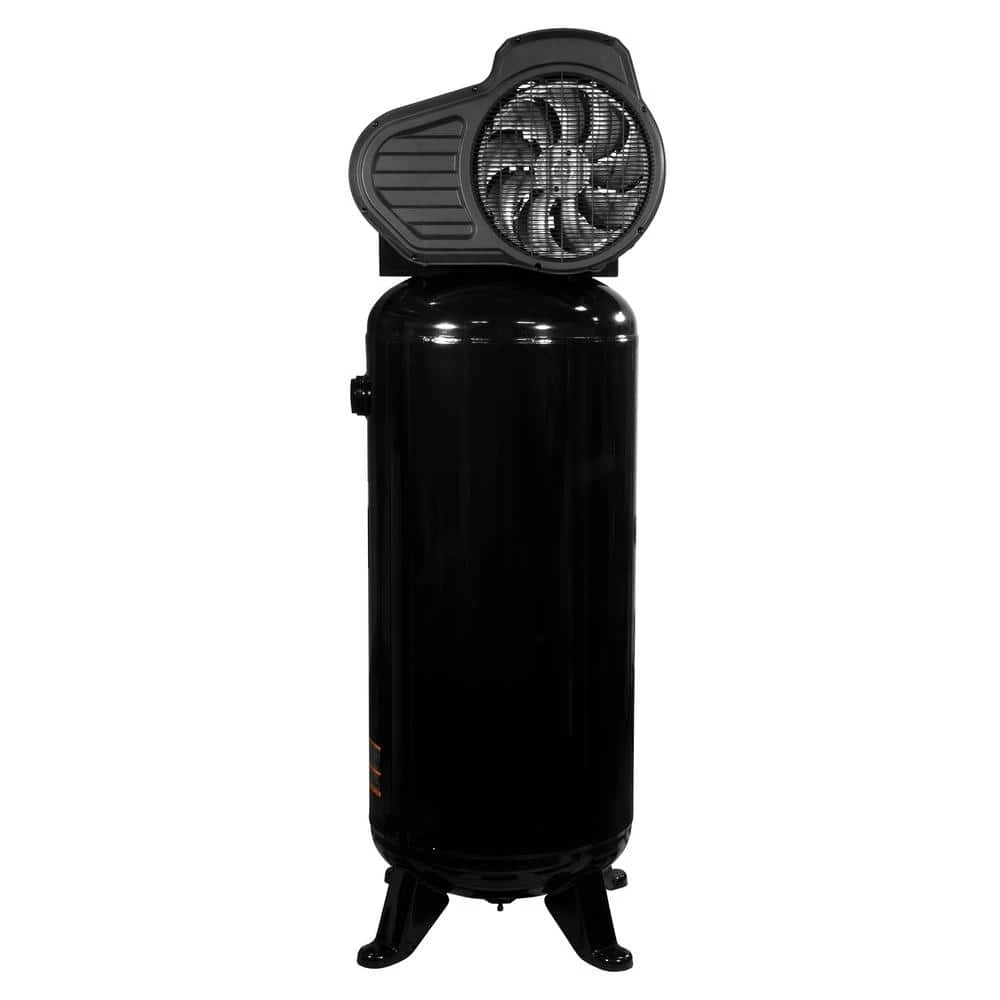

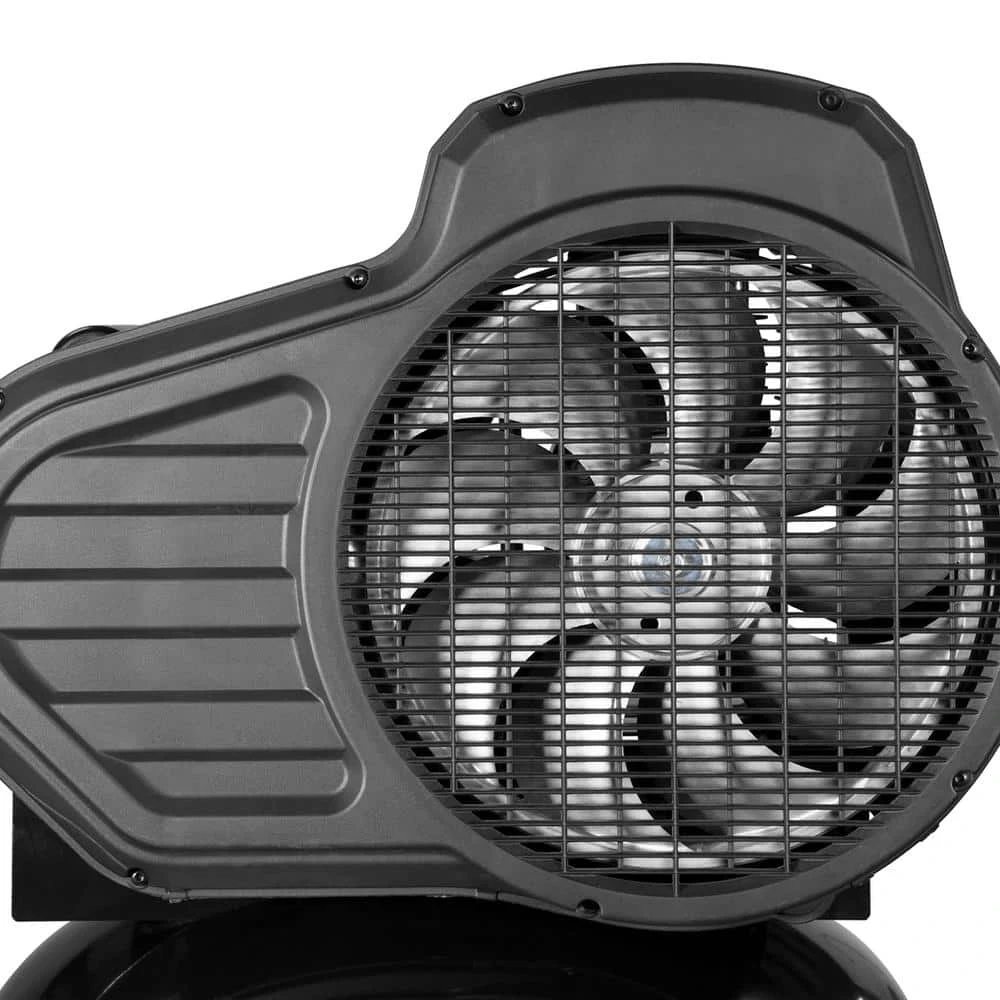

- High efficiency aluminum flywheel provides maximum air flow and lower start-up amps due to less starting inertia
- Aluminum head and valve plate to maximize heat dissipation
- Large capacity, 60 Gal. ASME tank at 175 maximum psi, with a large 3/4 in air outlet port, provides more air for longer run times for on air tools such as ratchets, impacts, spray guns, hammers, etc.
- Oil level sight glass and easily accessible oil fill; shipped with synthetic oil for optimum performance and long life

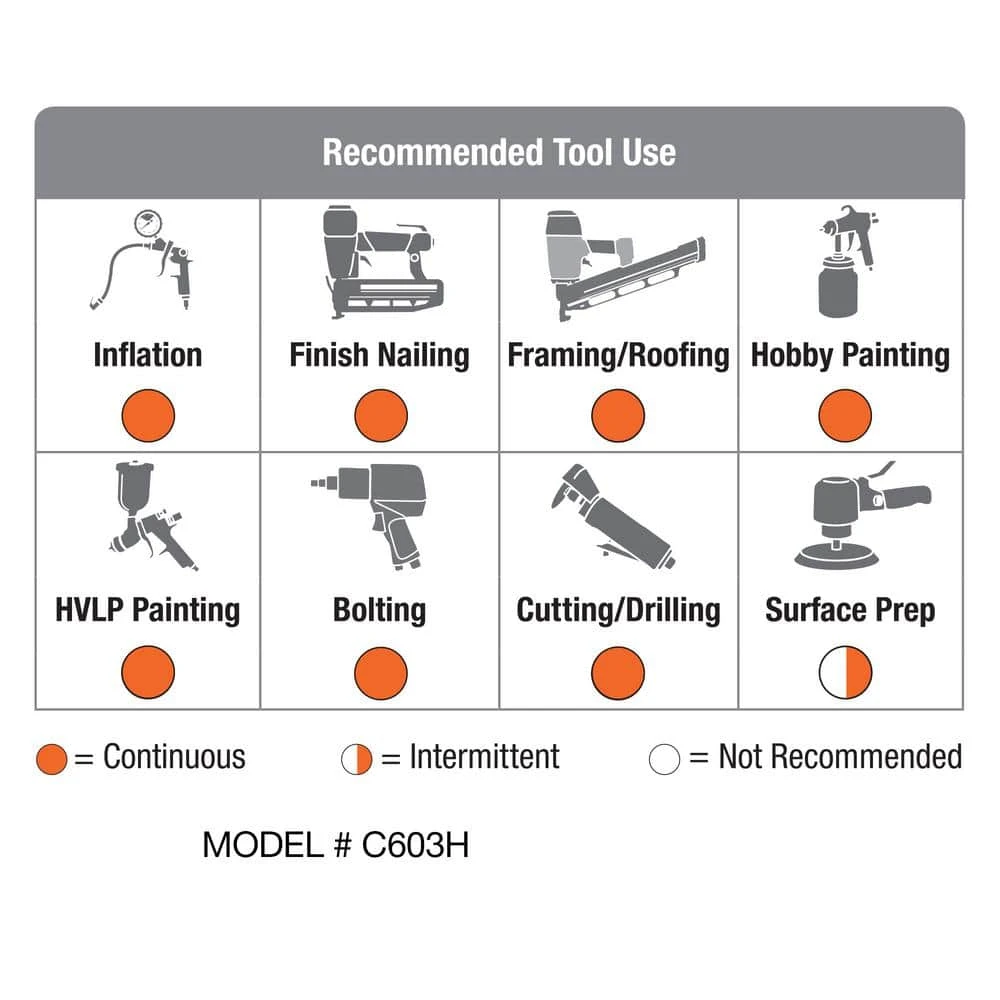

- Perfect for inflation, finish nailing, framing/roofing, hobby painting, bolting, and cutting/drilling
- Large capacity, 60 Gal. ASME tank at 175 max PSI, with a large 3/4 in air outlet port, provides more air for longer run times for on air tools such as ratchets, impacts, spray guns, hammers, etc
| Air Delivery SCFM @ 40PSI | 13.4 |
|---|---|
| Air Delivery SCFM @ 90PSI | 11.5 |
| Amperage (A) | 15 A |
| Application Use | Air Brushing,Bolting,Brad Nailing,Cutting,Drilling,Finish Nailing,Framing Nailing,HVLP Painting,Hobby Nailing,Hobby Painting,Inflation,Roof Nailing,Spraying,Stapling,Trim,Wrenching |
| Compressor Tank Capacity (gal.) | 60 gal |
| Compressor Type | Industrial |
| Compressor Volume Rating | Standard |

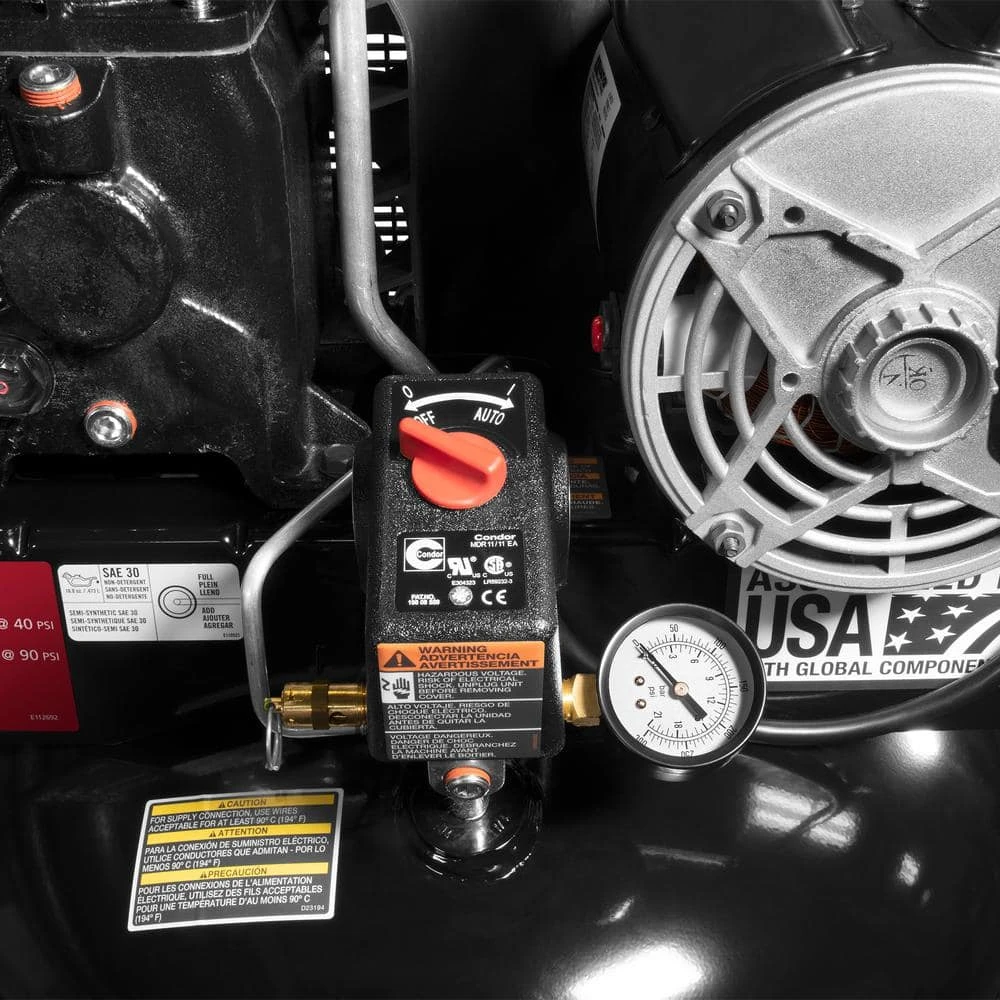

| Compressor/Air Tool Features | Tank Pressure Gauge |
| Decibel Rating (Outdoor) | 87 dBA |
| Horsepower (hp) | 3.7 hp |
| Lubrication Type | Oil |
| Maximum Pressure (PSI) | 175 PSI |
| Number of Total Batteries Included | 0 |
| Phase Type | 1 Phase |
| Portable | No |
| Power Source | Electric |
| Power Type | Corded Electric |
| Product Weight (lb.) | 197 lb |
| Returnable | 30-Day |
| Stage Count | Single Stage |
| Tank Style | Vertical |
| Voltage (V) | 230 V |
| Manufacturer Warranty | 2 Year Limited |
| Product Depth (in.) | 23.53 in |
| Product Height (in.) | 66.25 in |
| Product Width (in.) | 23.64 in |
